Wall Thickness Gauge Digital

Wall Thickness Gauge Digital

It is a user-friendly device that performs simple operations and used to measure the wall thickness of various non-ferrous materials like glass, preforms, plastics, water tanks, PET products, foam, aluminum, and many more.

It is a user-friendly device that performs simple operations and used to measure the wall thickness of various non-ferrous materials like glass, preforms, plastics, water tanks, PET products, foam, aluminum, and many more.

The instrument works on the principle of Hall Effect.

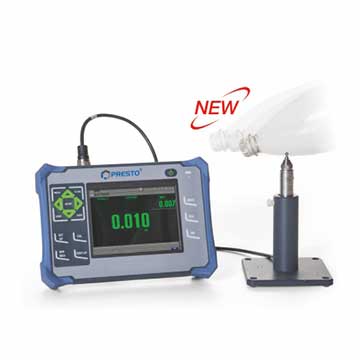

The Wall Thickness Gauge Digital-Magnamike 8600 is a bottle wall thickness measurement gauge which uses a simple and secure magnetic procedure to do repeatable measurements for non-ferrous material testing.

The operation of the instrument is quite straight forward.

The measurement with the device can be secure magnetic procedure to do repeatable measurements for non-ferrous material testing.

The operation of the instrument is quite straightforward.

The measurement with the device can be done by scanning the one side of the specimen with the magnetic probe, and disk is placed on another side and dropped in a container.

The Hall Effect mechanism helps to measure the distance between the probe tip and the target ball.

The measurement can be displayed quickly on the colored display screen.

Bottle Testing is an authorized dealer of Magnamike 8600, an extremely portable thickness measurement instrument.



Product Specification:

  • Standard Max. Thickness: 9.14 mm
  • Min. Thickness range: 0.001mm (0.0001 in.)
  • Display: Color VGA Display (Digital)
  • keypad: English, Japanese, Chinese, International
  • Min/Max capture mode: Captured at 60Hz measurement rate
  • Display update rate: 4,8,16 and 20Hz
  • Resolution: 0.1mm (0.01 in.), 0.01 mm (0.001 in.), 0.001mm (0.0001 in.)
  • Max. Thickness Expandable range: Up to 25.4mm (1.00 in.) (Optional)


Product Features:

  • Measurement based on probe’s Hall Effect sensor
  • Digital Display readout (LCD)
  • Repeatability in test measurements of test sample
  • Measurements through Target Ball or wire or Disk using Magnetic field
  • Expandable Thickness range upto 25.4mm (1.00 in.)
  • Replaceable Wear Caps – Standard and Chisel type
  • Expanded target selection – ¼ in. magnetic target balls or Wire target
  • Larger Color VGA display
  • Fast measurement update rate 60Hz
  • Programmable Instrument lock with password
  • RS-232/USB/VGA output Communication Modes
  • Direct Interface to Excel spreadsheet
  • WINXL interface program
  • Generate on board reports
  • Designed with IP67 rating
  • The expanded alphanumeric data logger
  • Save and recall option for stored calibration file
  • Bench style case with improved gauge stand
  • Low and high reading Alarm
  • Ability to export file to Micro SD card in .txt and CSV format


Probes:

  • 86PR-1: Standard Straight Probe 83.2 mm (3.27 in.) long and 18.8 mm (0.740 in.) Diameter
  • 86PR-2: Right Angle probe head 58.4 mm *18.8 mm, length 177.8 mm (2.30 in.*0.740 in. diameter, length 7.0 in.)



Optional:

Foot Switch – Programmable (Save, Send, Meas and Q-cal)


Optional Accessories:

  • 600-C-VGA-5 (U8780298): VGA output cable
  • 600-BAT-L (U8760056): Rechargeable lithium battery
  • 85FSW (U8780127): Remote footswitch
  • 86PR-2 (U8470028): Right angle probe
  • 86PRS2 (U8771044): Two-part probe stand for 86PR-2
  • 86PCC (U8780323): Coiled cable for 86PR-1 and 86PR-2
  • 86PR1-WC (U8780324): Replaceable wear cap for 86PR-1 and 86PR-2 probes
  • 86PR1-CWC (U8780326): Chisel tip wear cap for 86PR-1 and 86PR-2 probes
  • 80TB1 (U8771030): Target balls 1.59 mm (1/16 in.)
  • 80TB2 (U8771031): Target balls 3.18 mm (1/8 in.)
  • 80TB3 (U8771032): Target balls 4.77 mm (3/16 in.)
  • 80TB4 (U8771022): Target balls. 6.35 mm (1/4 in.)
  • 80TD1 (U8771034): Target disc. Flat edge
  • 80TD2 (U8771035): Target disc. V-edge
  • 86TBM3 (U8771039): Magnetic target balls. 4.76 mm (3/16 in.)
  • 86TBM4 (U8771040): Magnetic target balls. 6.35 mm (1/4 in.)
  • 86TW1 (U8771041): Wire target 0.045 in.
  • 86ACC-ER-KIT (U8771069): Extended calibration kit
  • 86ACC-W-KIT (U8771070): Wire target calibration kit
  • 86ACC-D-KIT (U8771071): Target disc calibration kit
  • 80CAL-NIS (U8771011): NIST-traced calibration standards (set of six)


Optional:

• Micro SD card not a Part of supply


Model No.

Magna-Mike 8600
